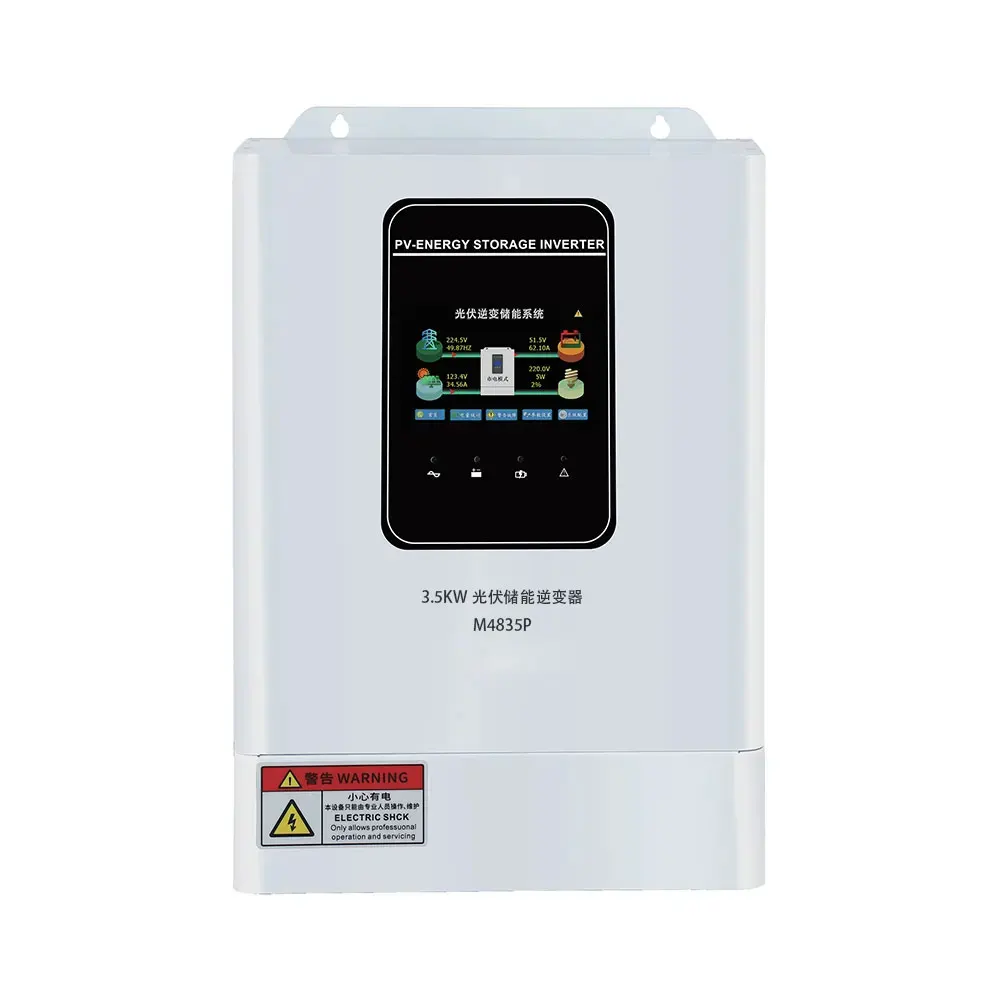

M4835P 3.5kW Energy Storage Inverter
Advanced solar power management with lithium battery support and pure sine wave output
Key Features
- 3.5kW rated output power with 7kW peak capacity
- Advanced MPPT technology with 99.5% tracking efficiency
- Supports lithium-ion and lead-acid batteries with 100A charging current
- Pure sine wave output with SPWM regulation technology
- Industrial UI design with capacitive touch screen
- Automatic peak/valley regulation to save electricity costs
- Compatible with high-power photovoltaic modules
- Multiple communication interfaces (RS485/CAN/USB/dry contact
Technical Specifications
| Inverter Output | |
|---|---|
| Rated Output Power | 3.5kW |
| Max. Peak Power | 7kW |
| Rated Output Voltage | L+N+PE 208/220/230/240Vac (configurable) |
| Output Waveform | Pure Sine Wave |
| Switching Time | 10ms (typical) |
| Battery Specifications | |
| Battery Type | Lead-acid/Lithium-ion/User-defined (configurable) |
| Rated Battery Voltage | 24V |
| Voltage Range | 20-30Vdc (configurable) |
| Max Charging Current | 80A (PV/Mains/Hybrid) |
| Photovoltaic Input | |
| MPPT Paths | 1 |
| Max Input Power | 5000W |
| Max Input Current | 18A |
| MPPT Voltage Range | 40-450Vdc |
Advanced Features
Intelligent Power Management
The M4835P 3.5kW energy storage inverter automatically utilizes peak and valley electricity rates to optimize charging and discharging cycles, significantly reducing your electricity costs. The system’s efficient power generation and management control platform ensures optimal performance.
Advanced Battery Management
Featuring unique lithium Battery BMS management technology with bi-directional communication, the inverter supports multiple battery types with a maximum charging current of 100A. It’s compatible with various BMS systems and supports future upgrades.
High-Efficiency Operation
With 93.5% battery inverter efficiency and 99.5% MPPT tracking efficiency, the M4835P delivers maximum power harvest from your solar panels. The automatic air-cooling system adjusts based on operating conditions for stable, long-term performance.
User-Friendly Interface
The industrial UI design features a high-definition touch capacitive screen for intuitive operation. The interface provides comprehensive real-time data monitoring and collection, with status indicators that can be seen at a glance.
Complete Specifications
| Parameter | Specification |
|---|---|
| Carrying Motor Capacity | 2HP |
| Rated Frequency | 50/60Hz |
| Parallel Operation | Not supported |
| Mains/Generator Input Voltage | UPS:170-264Vac; APL:90-280Vac (configurable) |
| Input Frequency Range | 50/60Hz |
| Bypass Overload Current | 20A |
| Dimensions | 430 × 314 × 118mm |
| Weight | 9kg |
| Protection Level | IP21 |
| Operating Temperature | -20°C to 55°C (derated to 80% above 40°C) |
| Humidity Range | 20%-95% non-condensing |
| Cooling Method | Built-in fan |
| Warranty | 2 years |
| Communication Interfaces | RS485/CAN/USB/dry contact |
