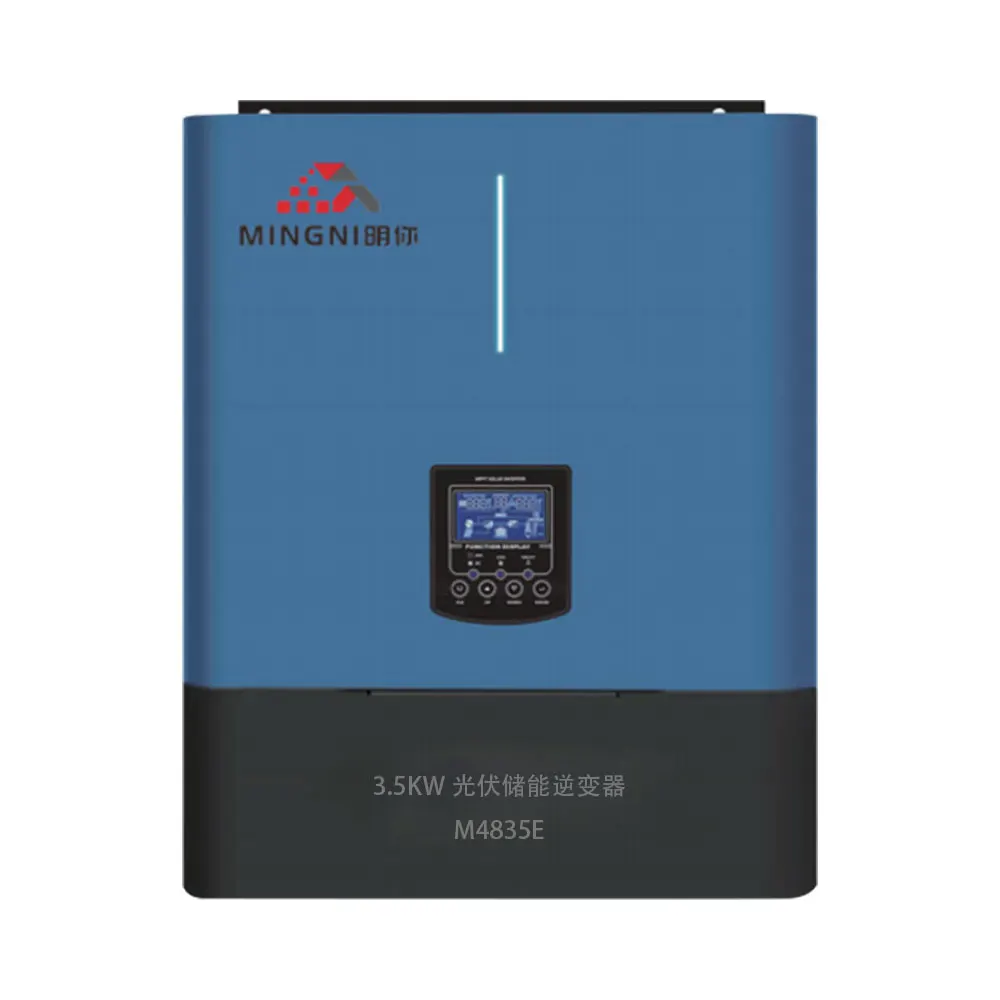

M4835E 3.5KW Solar Storage Inverter | High-efficiency pure sine wave inverter with MPPT solar controller and hybrid charging capability
Key Features
- Pure sine wave output – Provides clean and stable power for all your appliances
- 3.5KW rated power with 7KW peak capacity – Handles motor startups up to 2HP
- Built-in MPPT solar controller with 99.5% tracking efficiency
- Hybrid charging capability – 80A maximum charging current from solar, grid, or generator
- Configurable power priority – Choose between AC or solar priority via LCD settings
- Auto restart function – Automatically resumes operation when AC power returns
- Comprehensive protection – Overload, over temperature, and short circuit protection
- RGB light status indication – Clear visual status monitoring
- Multiple communication interfaces – RS485, CAN, USB, and dry contact
Technical Specifications
| Inverter Output | |
|---|---|
| Rated Output Power | 3.5KW |
| Max. Peak Power | 7KW |
| Output Voltage | Single phase 230Vac (L+N+PE) |
| Output Waveform | Pure sine wave |
| Switching Time | 10ms (typical) |
| Carrying Motor Capacity | 2HP |
| Battery Specifications | |
| Battery Type | Lead-acid |
| Rated Battery Voltage | 24V |
| Voltage Range | 20-30Vdc |
| Max Charging Current | 80A (solar/grid/generator) |
| Photovoltaic Input | |
| MPPT Paths | 1 |
| Max Input Power | 5000W |
| Max Input Current | 18A |
| Max Open Circuit Voltage | 500Vdc |
| MPPT Working Voltage Range | 40-450Vdc |
| Mains/Generator Input | |
| Input Voltage Range | UPS: 170-264Vac; APL: 90-280Vac |
| Bypass Overload Current | 20A |
| Efficiency | |
| MPPT Tracking Efficiency | 99.5% |
| Battery Inverter Efficiency | 93.5% |
| Physical Specifications | |
| Dimensions | 430 × 314 × 118mm |
| Weight | 7kg |
| Protection Level | IP21 |
| Operating Temperature | -20°C to 55°C (derated to 80% above 40°C) |
| Humidity Range | 20%-95% non-condensing |
| Cooling Method | Built-in fan |
| Warranty | 2 years |
Why Choose Our 3.5KW Solar Storage Inverter?
The M4835E 3.5KW solar storage inverter is designed for reliability and efficiency in residential solar energy systems. With its pure sine wave output, it can power even the most sensitive electronics safely. The advanced MPPT technology ensures you get the maximum energy harvest from your solar panels, while the hybrid charging capability gives you flexibility in power sources.
Ideal for off-grid or backup power systems, this inverter automatically switches between power sources and provides comprehensive protection against electrical faults. The compact design and lightweight construction make installation easy, while the robust build ensures long-term durability.
Applications
- Residential solar power systems
- Off-grid power solutions
- Backup power systems
- Small business energy solutions
- Remote power applications
