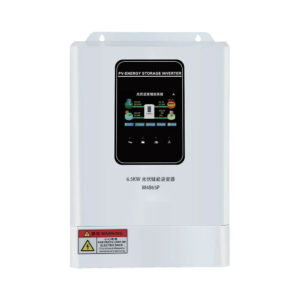

M4865E 6.5KW PV Solar Inverter | High-Efficiency Pure Sine Wave Inverter with MPPT Controller
Key Features
- 6.5KW Pure Sine Wave Output – Clean power for sensitive electronics
- 99.5% MPPT Tracking Efficiency – Maximizes solar energy harvest
- Dual Input Compatibility – Works with both AC power and generators
- Multiple Battery Support – Lead-acid, Lithium-ion, or User-defined
- Comprehensive Protection – Overload, over temperature, and short circuit protection
- Smart Priority Settings – Configurable AC/Solar transmission priority
Ideal For:
Residential solar systems, off-grid applications, backup power solutions, and hybrid energy systems.
Product Overview
The M4865E 6.5KW PV Solar Inverter is a high-performance, pure sine wave inverter designed for residential and small commercial solar installations. With its advanced MPPT technology achieving 99.5% tracking efficiency, this inverter ensures maximum power harvest from your solar panels. The unit offers flexible operation modes, allowing seamless switching between solar, grid, and generator power sources.
Technical Specifications
| Inverter Output | |
|---|---|
| Model | M4865E |
| Rated Output Power | 6.5KW |
| Max. Peak Power | 13KW |
| Output Voltage | Single phase L+N+PE 230Vac |
| Carrying Motor Capacity | 6HP |
| Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Switching Time | 10ms (typical) |
| Parallel Operation | Not supported |
| Battery Specifications | |
| Battery Type | Lead-acid/Lithium ion/User-defined |
| Rated Battery Voltage | 48V |
| Voltage Range | 40-60Vdc |
| Max. Photovoltaic Charging Current | 100A |
| Max. Mains/Generator Charging Current | 100A |
| Max. Hybrid Charging Current | 100A |
| Photovoltaic Input | |
| MPPT Paths | 1 |
| Max. Input Power | 9000W |
| Max. Input Current | 28A |
| Max. Open Circuit Voltage | 500Vdc |
| MPPT Working Voltage Range | 60-450Vdc |
| Mains/Generator Input | |
| Input Voltage Range | UPS:170-264Vac; APL:90-280Vac |
| Input Frequency Range | 50/60Hz |
| Bypass Overload Current | 40A |
| Efficiency | |
| MPPT Tracking Efficiency | 99.5% |
| Battery Inverter Efficiency | 93% |
| Physical Specifications | |
| Dimensions | 430 × 314 × 118mm |
| Weight | 8.5kg |
| Protection Level | IP21 |
| Operating Temperature | -20°C to 55°C (>40°C derated to 80%) |
| Humidity Range | 20%-95% (non-condensing) |
| Cooling Method | Built-in fan |
| Warranty | 2 years |
| Communication | |
| Built-in Interfaces | RS485/CAN/USB/Dry contact |
Advanced Features
Pure Sine Wave Output
Delivers clean, stable power compatible with all electronic devices, including sensitive medical equipment and precision instruments.
Advanced MPPT Technology
With 99.5% tracking efficiency, ensures maximum power point tracking from your solar panels under varying weather conditions.
Flexible Power Management
Configurable priority settings allow you to choose between solar or grid power as primary source based on your needs.
Comprehensive Protection
Built-in safeguards against overload, over temperature, and short circuits ensure long-term reliability and safety.
Multi-Battery Compatibility
Supports various battery types including lead-acid, lithium-ion, and user-defined battery configurations.
Seamless Grid Switching
Fast 10ms transfer time ensures uninterrupted power supply when switching between solar and grid sources.
Applications
- Residential Solar Systems – Power your home with clean solar energy
- Off-Grid Installations – Ideal for remote locations without grid access
- Backup Power Solutions – Reliable power during grid outages
- Hybrid Energy Systems – Combine solar with grid or generator power
- Small Commercial Applications – Power small businesses and remote facilities
Why Choose the M4865E 6.5KW Solar Inverter?
The M4865E stands out in the 6.5KW inverter category with its exceptional efficiency, robust build quality, and versatile features. Its pure sine wave output ensures compatibility with all your appliances, while the high-efficiency MPPT controller maximizes your solar investment. The unit’s compact design (430 × 314 × 118mm) and lightweight (8.5kg) make installation easy, while the comprehensive protection features and 2-year warranty provide peace of mind.
With multiple communication interfaces (RS485/CAN/USB/Dry contact), the M4865E can be easily integrated into smart energy management systems for monitoring and control.
