Product Description:

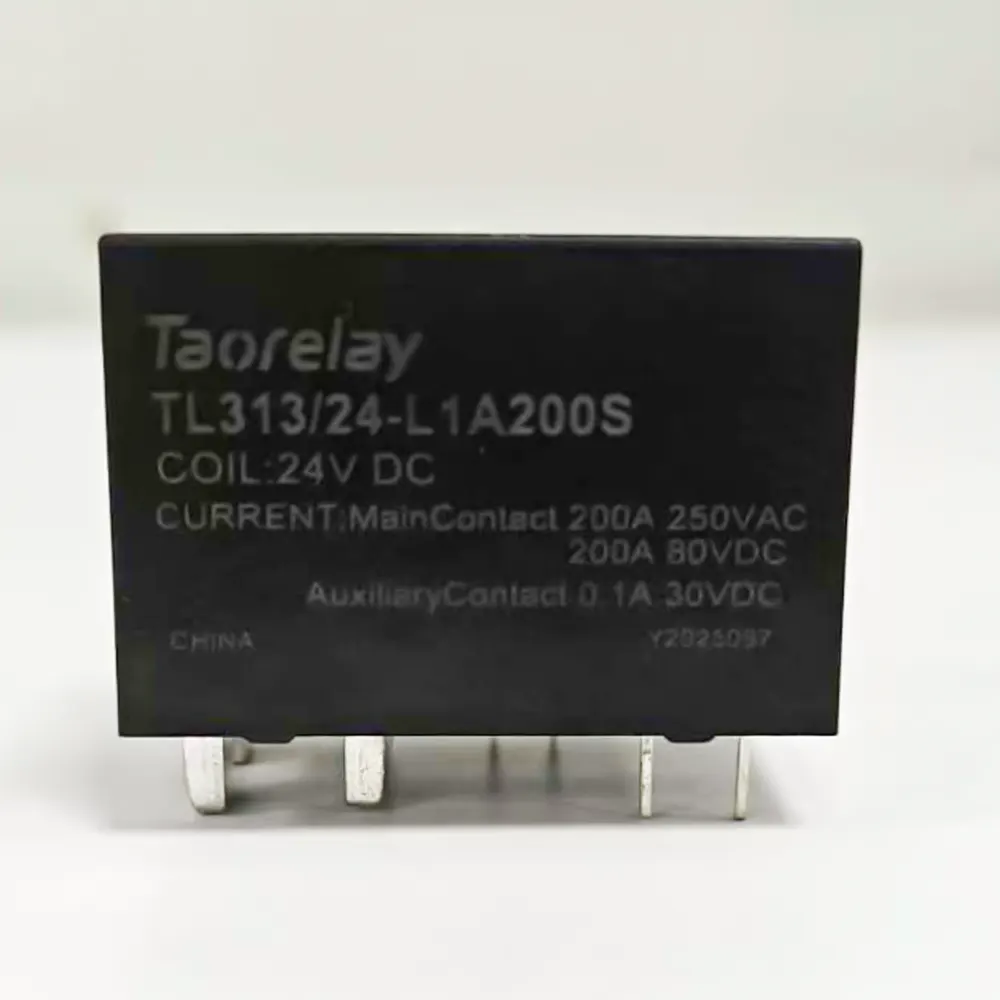

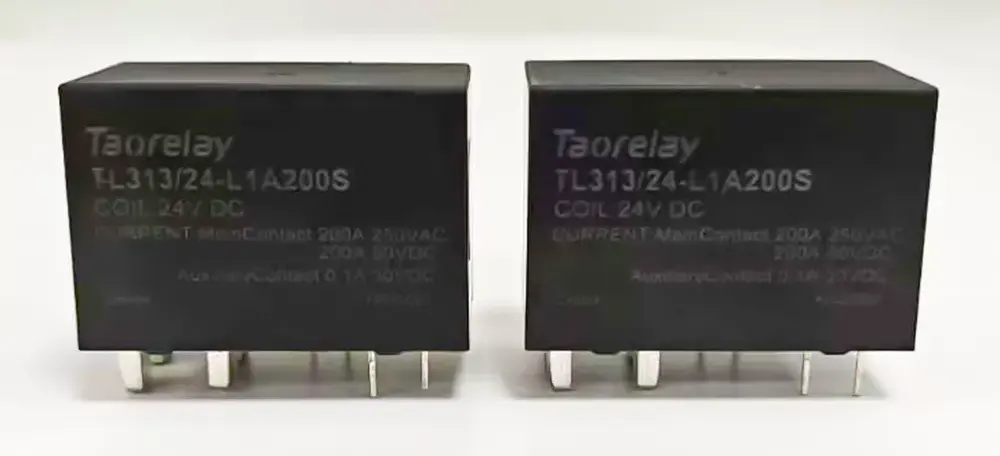

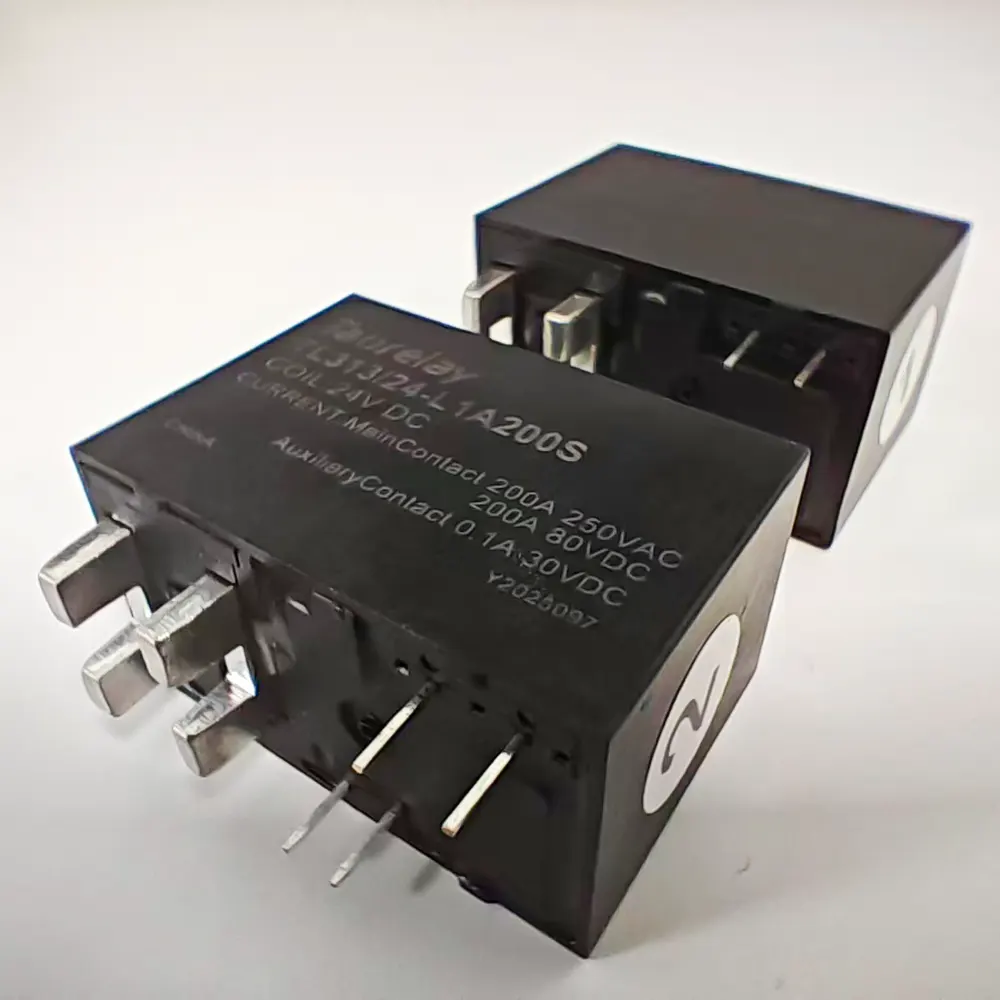

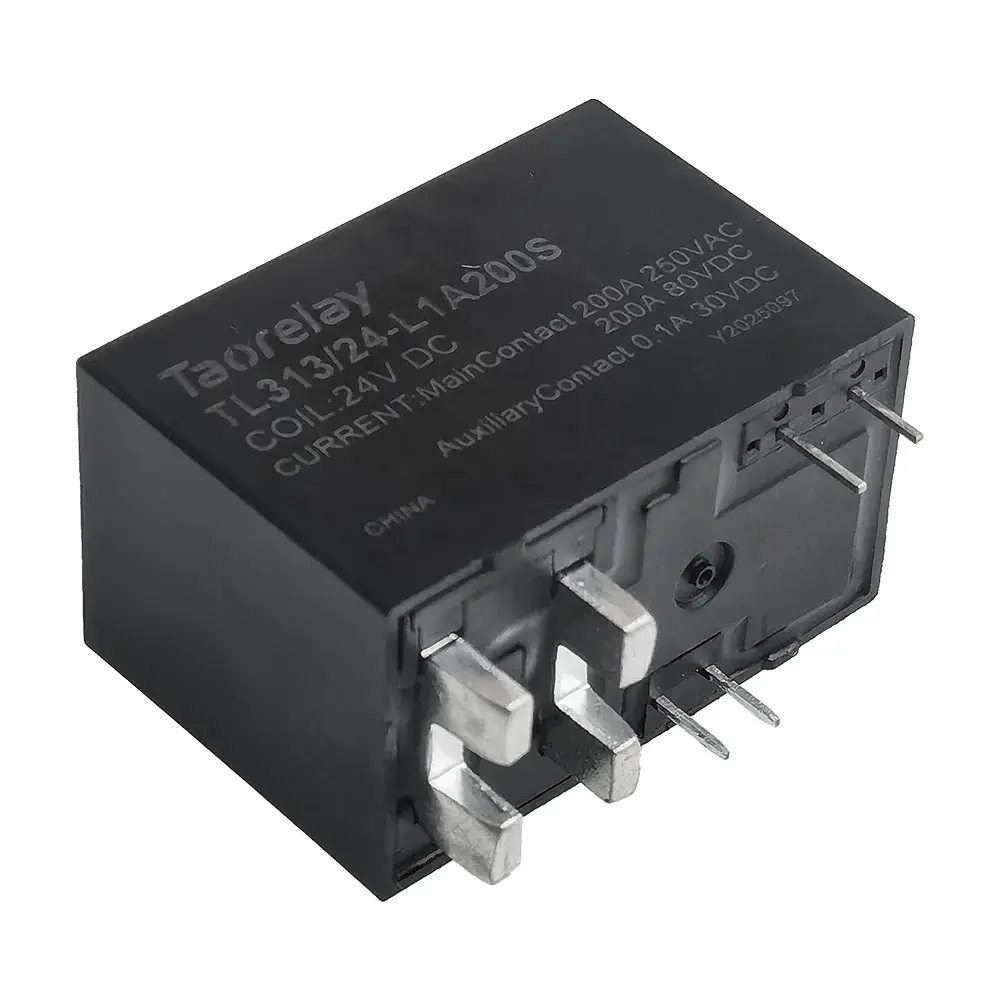

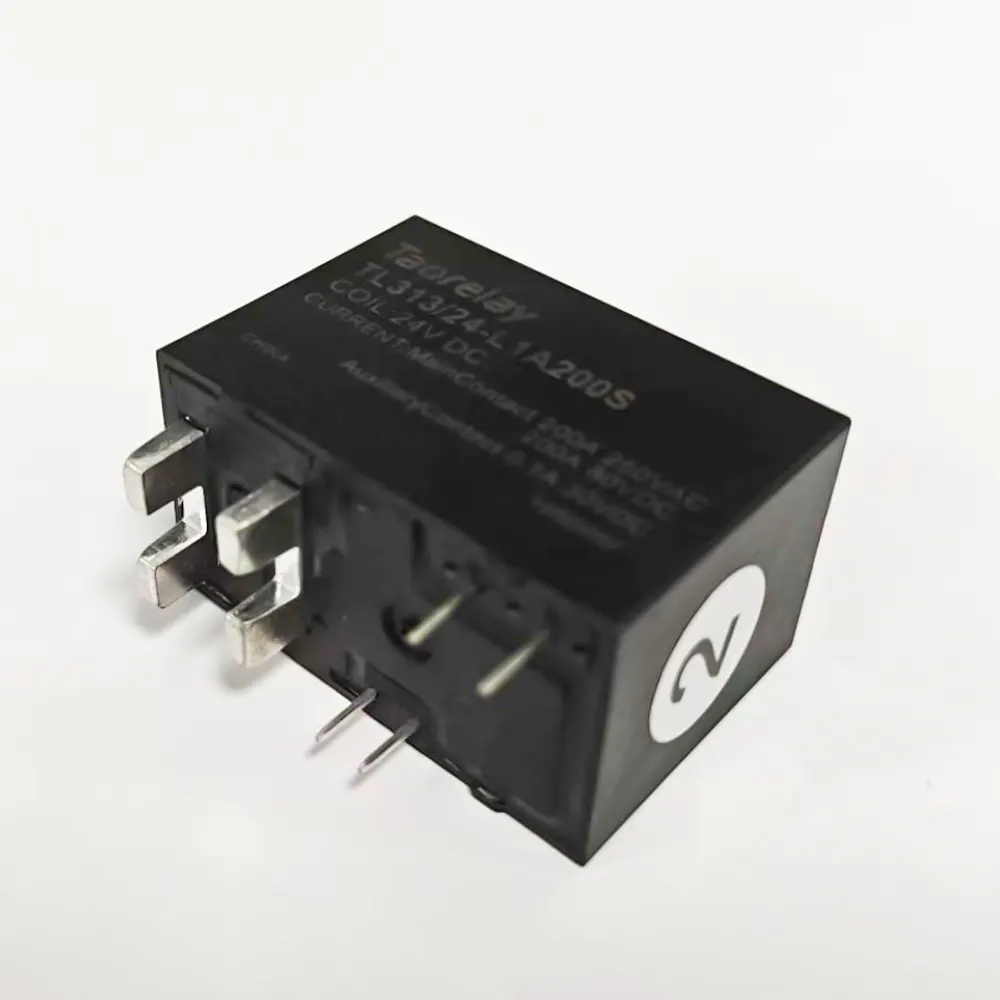

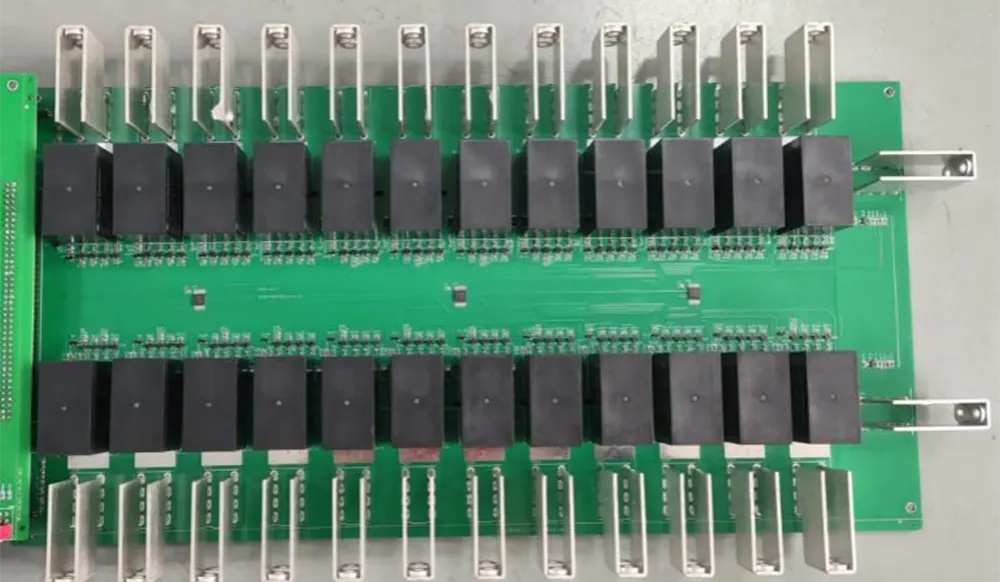

The TL313-200A Magnetic Contactor Relay Switch 200A is a high-performance industrial-grade relay designed for heavy-duty applications. Featuring 200A contact segmentation capability, magnetic arc extinguishing technology, and 4kV isolation voltage, this relay ensures reliable switching with low power consumption. It is RoHS compliant and meets IEC62055-31 UC3 standards, making it ideal for automation, power distribution, and motor control systems. With a compact design (39.4 × 22 × 27.5mm) and wide operating range (-40°C to +85°C), this 200A contactor relay switch delivers durability in harsh environments while supporting single or dual coil configurations for flexible integration.
Key Features of Magnetic Contactor Relay Switch
- 200A Contact Segmentation Capacity
- Low Power Consumption & Pulse Drive
- Magnetic Arc Extinguishing Technology
- 4kV Withstand Voltage (Contact to Coil)
- Compliant with RoHS & IEC62055-31 UC3
- Operational Range: -40°C to +85°C
Technical Specifications of Magnetic Contactor Relay Switch
| Parameter | Value |
|---|---|
| Rated Current | 200A (250A Max Switching) |
| Voltage Rating | 200VAC / 60VDC (380VAC Max) |
| Contact Resistance | ≤5mΩ |
| Operate/Release Time | ≤20ms |
| Insulation Resistance | ≥1000MΩ (DC500V) |
| Dielectric Strength | AC1,800V / AC4,000V (1min) |
| Dimensions | 39.4mm × 22mm × 27.5mm |
Coil Specifications (Standard Type)
| VDC | Coil Resistance (±10%) | Action Voltage | Pulse Width | Rated Power |
|---|---|---|---|---|
| 24V | 74.8Ω (Single), 2×37.4Ω (Dual) | 70% VDC | 50ms | 7.7W (Single), 15.4W (Dual) |
