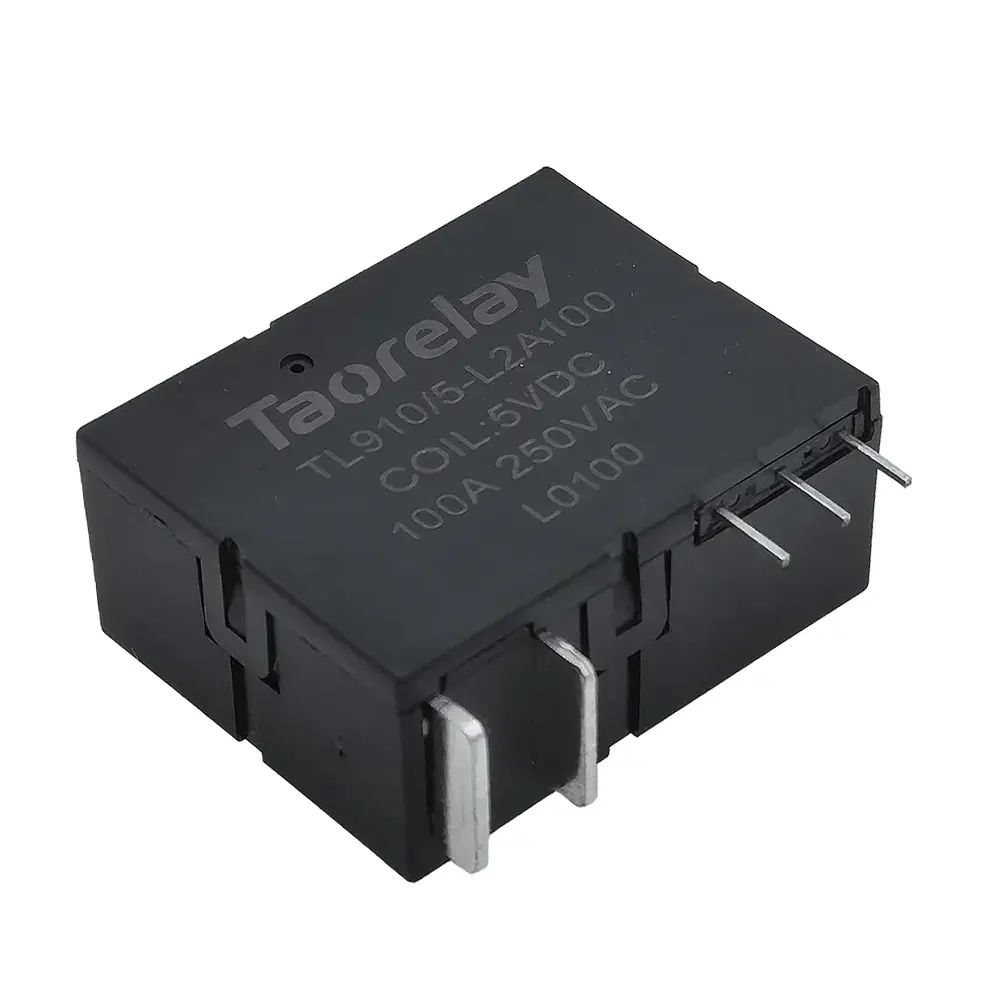

TL910-100A Magnetic Latching Relay 100A – Engineered for high-performance applications requiring 100A current capacity. Features magnetic arc extinguishing technology, dual/single coil options, and ultra-low power consumption. RoHS and IEC-certified, offering exceptional reliability, impact resistance, and a compact 38×30×16.5mm design. Ideal for industrial and automotive systems demanding energy-efficient, long-lasting switching solutions.
Application Fields of TL910-100A Magnetic Latching Relay: Designed for high-power switching scenarios, the TL910-100A excels in industrial automation, renewable energy systems (solar/wind power inverters), electric vehicle charging stations, and smart grid infrastructure. Its 100A capacity and magnetic arc extinguishing technology make it ideal for heavy-duty equipment, battery management systems, and power distribution units where energy efficiency, reliability, and compact size are critical. Certified for harsh environments (-40°C to +70°C), it’s also suited for marine, aerospace, and transportation applications demanding vibration resistance and long-term durability.
Key Features of magnetic latching relay 100A
- 100A High-Current Capacity
- Magnetic Arc Extinguishing Technology
- Low Power Consumption & Pulse Drive
- Single/Dual Coil Options
- RoHS & IEC62055-31 UC3 CE Certified
- Strong Impact Resistance & High Reliability
Technical Specifications
Electrical Parameters of magnetic latching relay 100A
| Rated Current | 100A |
|---|---|
| Max Switching Voltage | 440VAC / 110VDC |
| Contact Resistance | ≤1.5mΩ (12VDC 1A) |
| Insulation Resistance | ≥1,000MΩ (DC500V) |
| Dielectric Strength | AC 4,000V (1min) |
Coil Parameters
| Voltage Range | 5VDC, 6VDC, 9VDC, 12VDC, 24VDC (±10%) |
|---|---|
| Rated Power | 12W (Single Coil), 24W (Dual Coil) |
| Pulse Width | 50ms |
| Operate/Reset Voltage | ≤70% of Rated Voltage |
Mechanical & Environmental
| Dimensions | 38mm × 30mm × 16.5mm |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Vibration Resistance | 10–55Hz, 1.5mm amplitude |
| Lifespan | 300,000 cycles (100A 250VAC) |
Certifications & Compliance
- RoHS Compliant
- IEC62055-31 UC3 CE Certified
- ISO9001, ISO/TS16949, ISO14001, OHSAS18001
