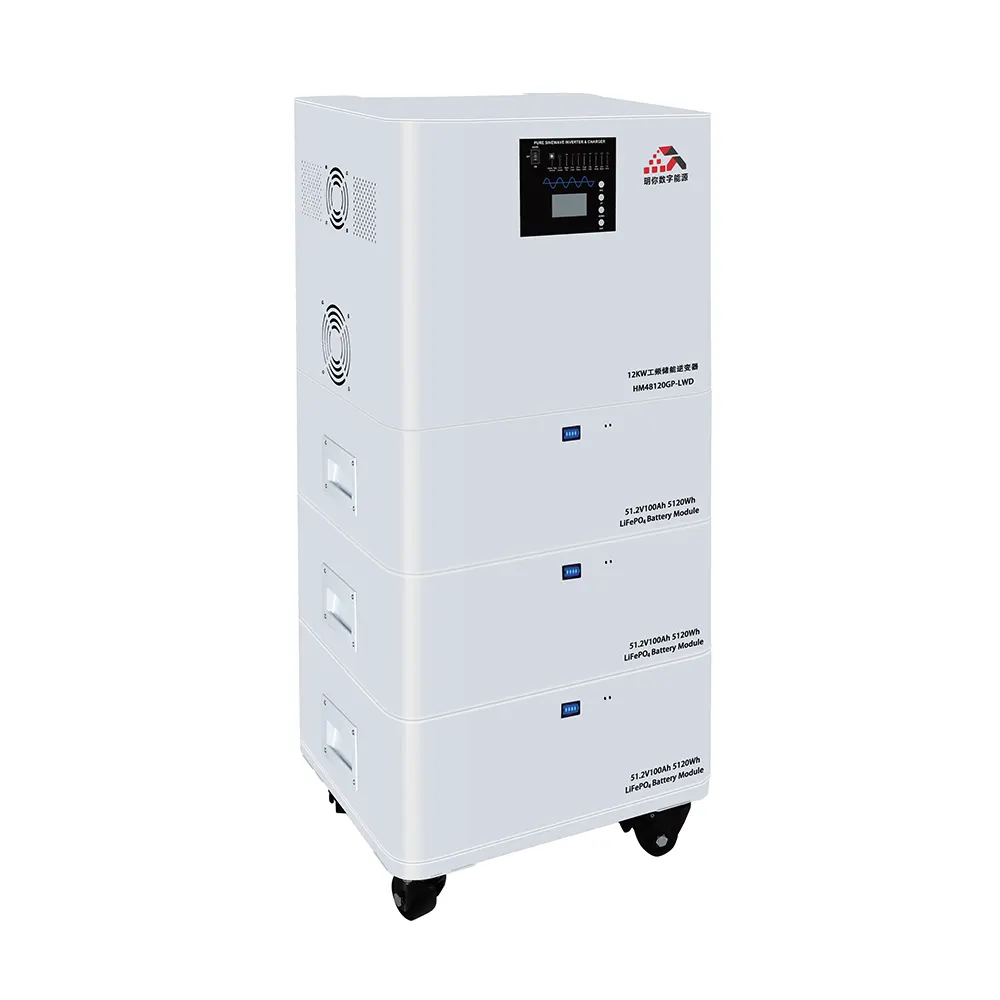

M48120P-LWD Stackable 12KW Solar Power Inverter | High-Capacity Expandable Energy Storage System with Pure Sine Wave Output
Key Features
- Stackable design for flexible capacity expansion
- 12KW rated power with 25KW peak capacity
- Industrial frequency inverter for heavy-duty loads
- Pure sine wave output for sensitive equipment
- Supports both lead-acid and LiFePO4 batteries
- High-efficiency MPPT (99.9% tracking efficiency)
- Wide operating temperature range (-25°C to 55°C)
- Multiple communication interfaces (RS485/CAN/USB)
Technical Specifications of Stackable 12KW Solar Power Inverter
| Model | M48120P-LWD (50/60Hz) |
|---|---|
| Rated Output Power | 12,000W |
| Max Peak Power | 25,000W |
| Output Voltage | Single-Phase 230Vac (L+N+PE) |
| Output Waveform | Pure Sine Wave |
| Battery Type | Lead-Acid or LiFePO4 |
| Battery Voltage | 51.2V (Range: 41.6-58.4V) |
| Battery Capacity | 5,120Wh per unit |
| MPPT Input Power | 10,000W max |
| MPPT Voltage Range | 120-450Vdc |
| Efficiency | MPPT: 99.9%, Inverter: >96.8% |
| Dimensions | 555 × 440 × 915mm |
| Weight | Not specified |
| Warranty | 2 Years |
Advanced Features
- Stackable Design: Free combination capability for flexible power expansion
- Industrial-Grade Performance: Capable of powering up to 10HP motors
- High Performance BMS: Intelligent battery management system for safety
- Wide Input Range: UPS mode: 170-280Vac, APL mode: 90-280Vac
- Premium Components: Uses A-grade battery cells for reliability
- Robust Construction: IP21 protection rating for basic environmental protection
- Comprehensive Monitoring: Built-in RS485, CAN, USB, and dry contact interfaces
Applications of Stackable 12KW Solar Power Inverter
This stackable solar power inverter is ideal for:
- Commercial solar energy systems
- Industrial power backup solutions
- Off-grid and hybrid solar installations
- High-power equipment operation
- Energy storage systems requiring expansion capability
- Applications with heavy inductive loads
