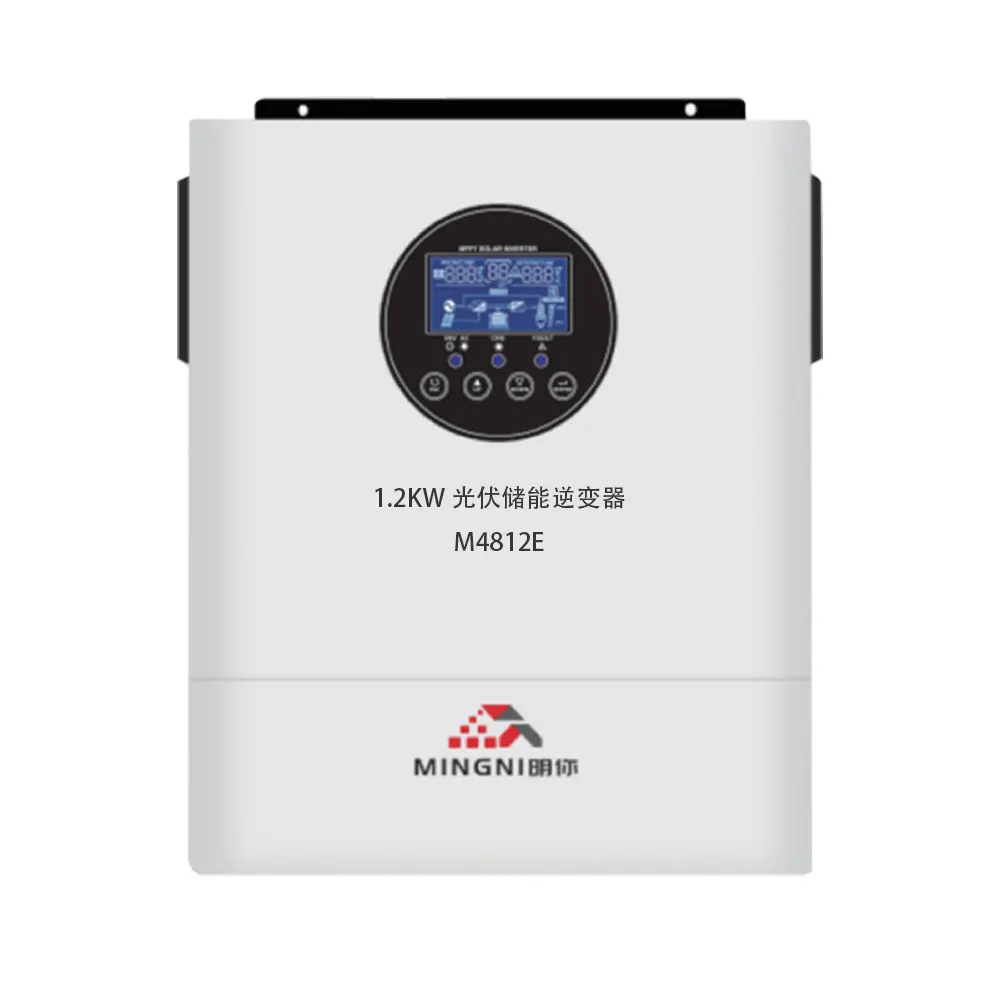

M4812E 1.2KW Solar Power Inverters – Pure Sine Wave Hybrid Inverter
Key Features:
- 1.2KW Pure Sine Wave Output – Clean power for sensitive electronics
- Built-in MPPT Solar Controller – 99.5% tracking efficiency
- Hybrid Charging – Supports solar, AC, and generator inputs
- Multiple Protections – Overload, over temperature, and short circuit protection
- Configurable Priority – Set AC or solar as primary power source
- Compact Design – Only 430×314×118mm, easy to install
Product Specifications of 1.2KW Solar Power Inverters
| Inverter Output | |
|---|---|
| Rated Output Power | 1.2KW |
| Max. Peak Power | 2.4KW |
| Output Voltage | Single phase 230Vac (L+N+PE) |
| Output Waveform | Pure Sine Wave |
| Switching Time | 10ms (typical) |
| Frequency | 50/60Hz |
| Battery Specifications | |
| Battery Type | Lead-acid/Lithium ion/User-defined |
| Rated Battery Voltage | 12V |
| Voltage Range | 10-16Vdc |
| Max Photovoltaic Charging Current | 60A |
| Max Mains/Generator Charging Current | 60A |
| Max Hybrid Charging Current | 80A |
| Photovoltaic Input | |
| MPPT Paths | 1 |
| Max Input Power | 1000W |
| Max Input Current | 14A |
| Max Open Circuit Voltage | 125Vdc |
| MPPT Working Voltage Range | 20-100Vdc |
| Mains/Generator Input | |
| Input Voltage Range | UPS:170-264Vac; APL:90-280Vac |
| Input Frequency Range | 50/60Hz |
| General Specifications | |
| Dimensions | 430×314×118mm |
| Weight | 6kg |
| Protection Level | IP21 |
| Operating Temperature | -20°C to 55°C (derated to 80% above 40°C) |
| Humidity Range | 20%-95% non-condensing |
| Cooling Method | Built-in fan |
| Warranty | 2 years |
| Communication Interfaces | RS485/CAN/USB/Dry contact |
Product Description
The M4812E is a high-performance 1.2KW solar power inverter designed for residential and small commercial solar systems. This pure sine wave hybrid inverter combines solar, AC, and generator power inputs with intelligent switching to ensure uninterrupted power supply.
With its built-in MPPT solar controller boasting 99.5% tracking efficiency, this inverter maximizes your solar energy harvest. The configurable power source priority allows you to optimize energy usage based on your needs and local conditions.
The compact design (430×314×118mm) and lightweight construction (6kg) make installation easy, while the comprehensive protection features ensure safe and reliable operation. The RGB light status indication provides clear visual feedback on system status.
Applications
- Residential solar power systems
- Small off-grid power systems
- Backup power solutions
- RV and marine applications
- Remote monitoring stations
Why Choose Our 1.2KW Solar Power Inverter?
Our M4812E 1.2KW solar power inverter stands out in the market with its:
- High Efficiency: 92% battery inverter efficiency reduces energy loss
- Versatile Compatibility: Works with lead-acid, lithium-ion, and custom battery types
- Flexible Configuration: Adjustable power source priority via LCD settings
- Reliable Protection: Comprehensive safeguards against overload, overheating, and short circuits
- Auto-Restart: Automatically resumes operation when AC power returns
- 2-Year Warranty: Backed by manufacturer support
