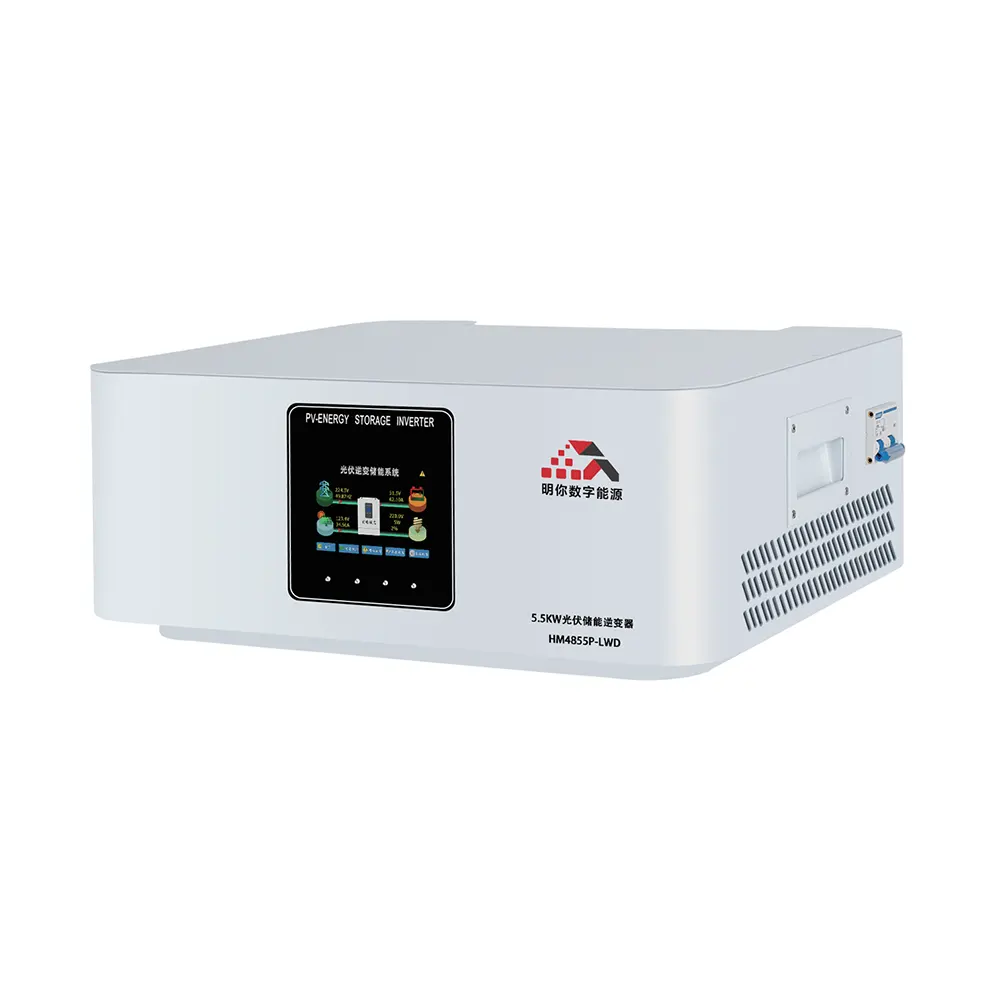

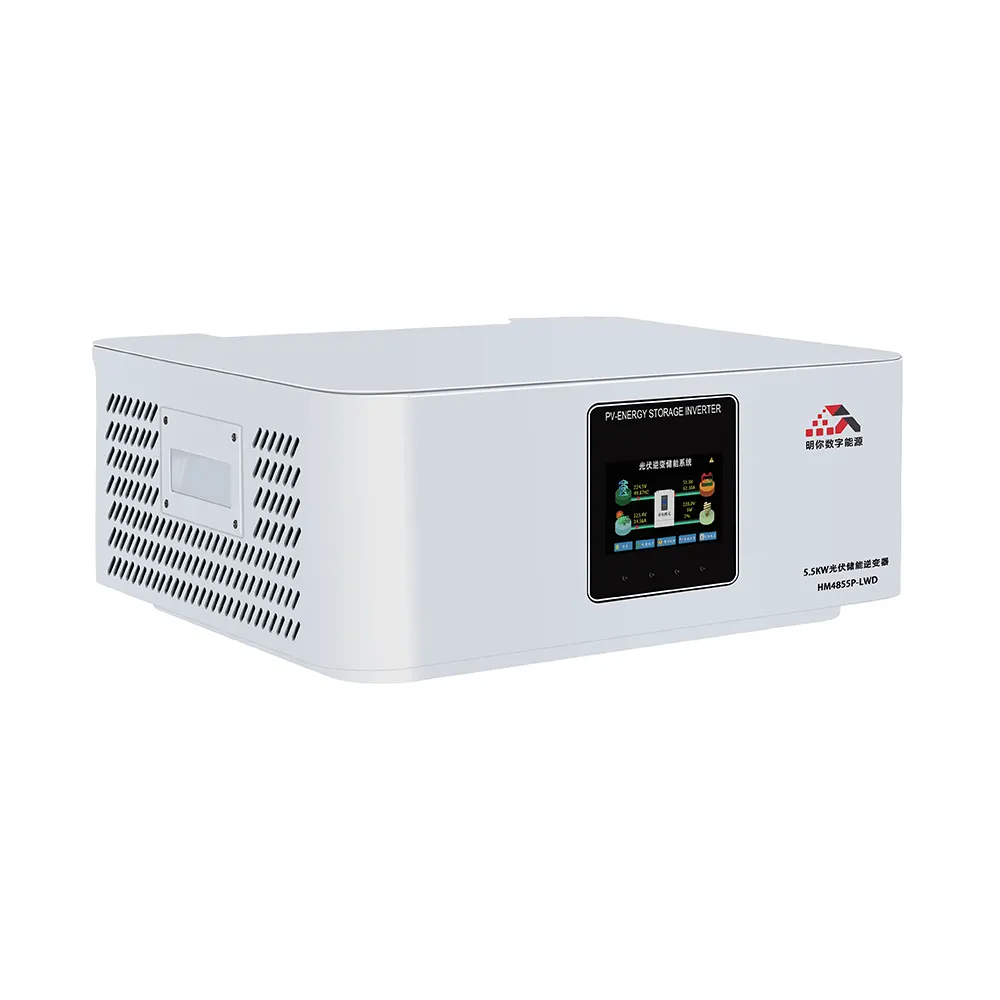

Stacked Smart Solar Inverter 5.5kW
Model: M4855P | High-Efficiency Photovoltaic Storage Solution
Key Features
- Modular Stacked Design – Free combination and expansion capability
- High Efficiency – 99.5% MPPT tracking efficiency and 94% battery inverter efficiency
- Flexible Battery Compatibility – Works with lead-acid, lithium-ion, and user-defined battery types
- Scalable System – Supports up to 9 parallel units for expanded capacity
- Advanced Protection – Constant voltage protection for connected appliances
- Smart Communication – Built-in RS485, CAN, USB, and dry contact interfaces
- Future-Proof – Supports management upgrades and custom requirements
Technical Specifications
Inverter Output of Stacked Smart Solar Inverter
| Specification | Value |
|---|---|
| Rated Output Power | 5.5kW |
| Max. Peak Power | 11kW |
| Rated Output Voltage | L+N+PE 208/220/230/240Vac (configurable) |
| Carrying Motor Capacity | 4HP |
| Output Frequency | 50/60Hz |
| Output Waveform | Pure sine wave |
| Switching Time | 10ms (typical) |
| Max. Parallel Units | 9 |
Battery Specifications
| Specification | Value |
|---|---|
| Battery Type | Lead-acid/Lithium ion/User-defined (configurable) |
| Rated Battery Voltage | 12V |
| Voltage Range | 40-60Vdc (configurable) |
| Max. Photovoltaic Charging Current | 80A (configurable) |
| Max. Mains/Generator Charging Current | 80A (configurable) |
| Max. Hybrid Charging Current | 80A (configurable) |
Photovoltaic Input
| Specification | Value |
|---|---|
| MPPT Paths | 1 |
| Maximum Input Power | 6000W |
| Maximum Input Current | 18A |
| Maximum Open Circuit Voltage | 50Vdc |
| MPPT Working Voltage Range | 120-430Vdc |
Mains/Generator Input
| Specification | Value |
|---|---|
| Input Voltage Range | UPS:170-264Vac; APL:90-280Vac (configurable) |
| Input Frequency Range | 50/60Hz Adaptive |
| Bypass Overload Current | 40A |
General Specifications
| Specification | Value |
|---|---|
| Dimensions (W×H×D) | 555 × 440 × 220mm |
| Protection Level | IP21 |
| Operating Temperature | -20°C to 55°C (output derated to 80% above 40°C) |
| Humidity Range | 20%-95% non-condensing |
| Cooling Method | Built-in fan |
| Warranty | 2 years |
| Communication Interfaces | RS485, CAN, USB, dry contact |
Why Choose Our Stacked Smart Solar Inverter 5.5kW?
Scalable Solar Energy Solution
Our Stacked Smart Solar Inverter 5.5kW offers unparalleled flexibility with its modular design. Start with a single unit and expand your system up to 9 parallel units as your energy needs grow. This future-proof approach ensures your investment is protected while providing a clear path for system expansion.
Industry-Leading Efficiency
With 99.5% MPPT tracking efficiency and 94% battery inverter efficiency, our system maximizes energy harvest from your solar panels while minimizing conversion losses. The pure sine wave output ensures clean, stable power for all your sensitive electronics.
Universal Battery Compatibility
Unlike many inverters that lock you into specific battery types, our solution works seamlessly with lead-acid, lithium-ion, and even user-defined battery systems. The configurable voltage range (40-60Vdc) provides additional flexibility for your energy storage needs.
Smart Monitoring & Control
The built-in communication interfaces (RS485, CAN, USB) enable seamless integration with monitoring systems and smart home platforms. Receive real-time performance data and control your system remotely for optimal energy management.
Applications
- Residential Solar Systems – Power your home with clean, renewable energy
- Commercial Installations – Scalable solution for businesses of all sizes
- Off-Grid Systems – Reliable power in remote locations
- Hybrid Systems – Combine solar with grid or generator power
- Backup Power Solutions – Maintain power during outages
