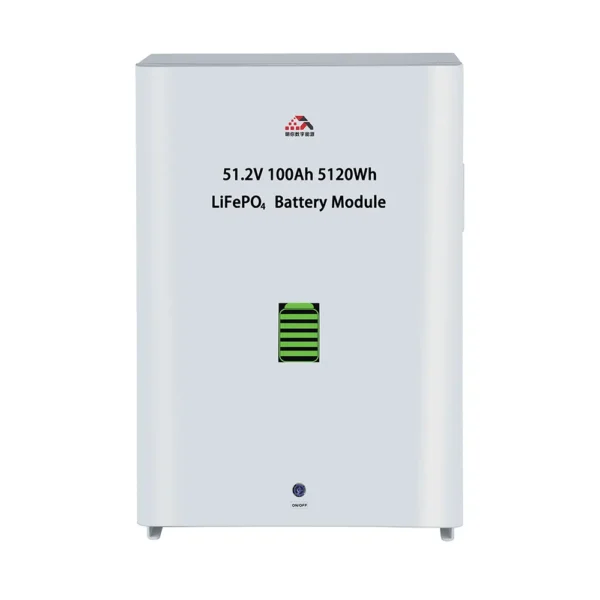

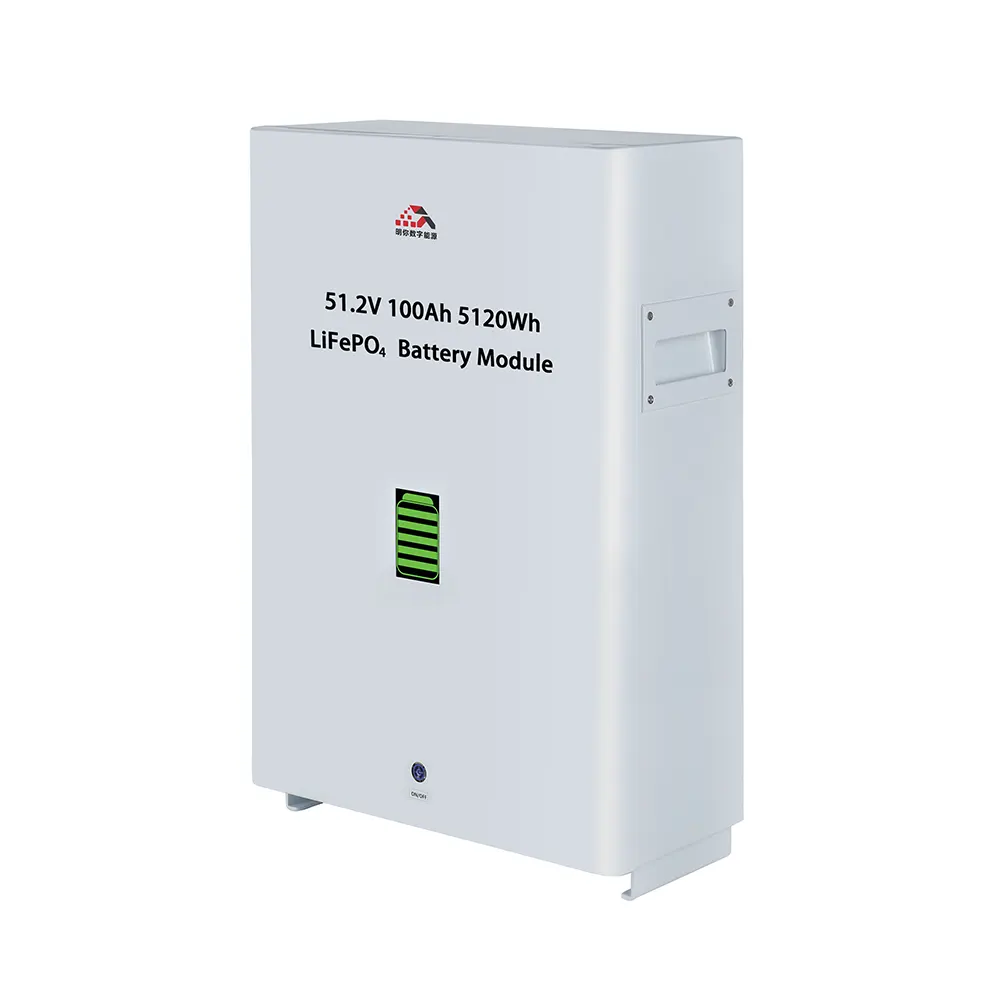

Wall Mounted Energy Storage Packs 51.2V 100Ah 5120Wh LiFePO4 Battery Pack
Key Features
- Advanced HD Touch Screen: Unlike traditional buttons, our wall mounted battery storage features a capacitive touch screen for easy monitoring without needing a computer.
- Customizable Battery Alarms: Get early warnings about potential battery issues with customizable alarm settings.
- Multiple Inverter Protocols: Built-in compatibility with various inverter communication protocols for seamless integration.
- Automatic Voltage Identification: Smart system automatically identifies battery/voltage type and supports multiple charging methods.
- Premium A-Grade Cells: Manufactured with top-brand LiFePO4 battery cells for superior safety and reliability.
- Wide Temperature Range: Operates efficiently in temperatures from -10°C to 50°C for discharge and 0°C to 45°C for charging.
- Long Cycle Life: Tested to withstand over 4000 charge/discharge cycles while maintaining 80% capacity.
Why Choose Our Wall Mounted Battery Storage?
Our 51.2V 100Ah energy storage system offers the perfect combination of capacity, reliability, and smart features for residential and commercial applications. With 5120Wh of storage capacity, premium LiFePO4 chemistry, and an intuitive touch interface, it’s the ideal solution for solar energy storage, backup power, and off-grid applications.
Technical Specifications
| Battery Cell Parameters | Remark | |
|---|---|---|
| Battery type and material | LiFePO4 | |
| Rated voltage/capacity | 3.2V/102Ah | |
| Battery cell Voltage range | 2.5V-3.65V | |
| Battery cell Weight | 2.05kg | |
| Battery internal resistance | ≤0.5mΩ | |
| Battery Pack Parameters | ||
| Rated voltage | 51.2V | |
| Rated capacity | 102Ah | |
| Battery pack Voltage range | 41.6-58.4V | |
| Total storage capacity | 5120Wh | |
| Combination method | IP21 | |
| Insulation resistance test value(Q) | ≤25mΩ | |
| Working temperature | Charge: 0-45℃ Discharge: -10-50℃ | |
| Standard Charging Current | 0.2C | |
| Fast Charging Current | 1.0C | |
| Standard discharge current | 0.2C | |
| Maximum Continuous Discharge Current | 1.0C | |
| Ambient relative humidity | 25-85%RH | |
| Cycle life | ≥4000 times | Maintaining 80% capacity |
Performance Guarantee
Our wall mounted battery storage is rigorously tested to ensure long-term reliability. After standard charging and 28 days of storage at 20°C±5°C, it maintains a discharge time of ≥300 minutes at 0.2C current. Even after 12 months of storage at 40-65% capacity, it delivers consistent performance when needed.
